Leading Manufacturers, Wholesaler and Exporters of Air Curtain, Air Shower, Dynamic Pass Box, Fan Filtration Unit, Garment Storage Cabinet, Horizontal Laminar Air Flow, Rectangular Static Pass Box and Vertical Laminar Air Flow from Pune.

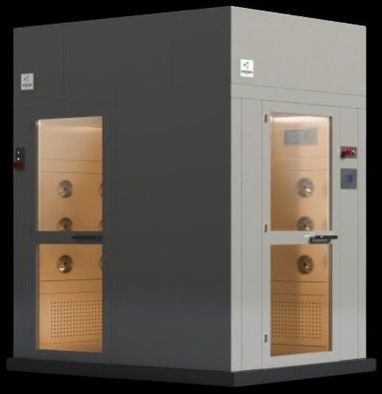

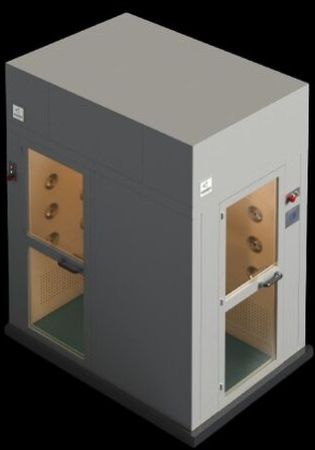

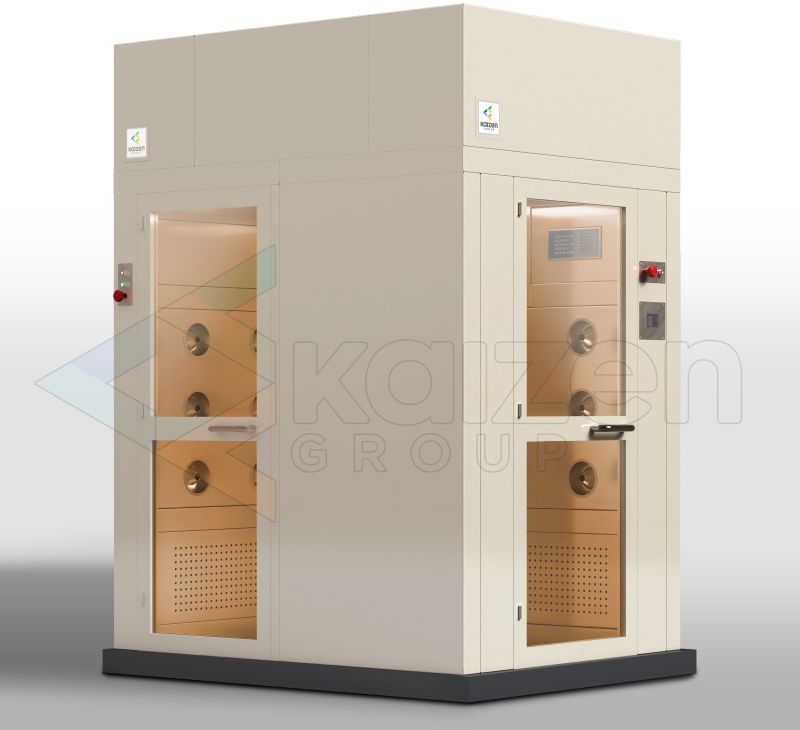

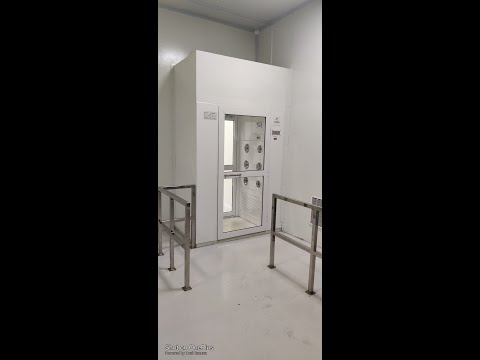

Air Showers are self contained chambers installed at entrances to clean rooms and other controlled environments. They minimize particulate matter entering or exiting the clean space. Personnel and materials entering or exiting the controlled environment are “scrubbed” by high velocity HEPA-filtered air jets with velocities of 20-22m/s (4000 4300fpm).Contaminated air is then drawn through the base within the unit, filtered and recirculated. Kaizen is a leader in air showers for demanding applications in the micro-electronics, semiconductors, pharmaceutical, spray painting, lab animal research and food markets. The present Kaizen Air Shower is a third-generation product and features a field-programmable microprocessor control that offers the maximum application flexibility of any unit on the market.
Kaizen dynamic pass box provides barrier between areas & to sweep away the particulate load if present on a surface of an object being transferred to the more clean area. Personal traffic is the most important factor which must be controlled. They may also be used to protect the external environment from egress of contamination.
Key Benefits:
Double skin SS 304 base surface
Reliable electronic interlock system
Double skin door with glass view panel
Features:
Statically and dynamically balanced motor blower assembly.
Microprocessor based digital LCD Controller displays all safety information on one screen easy monitoring all parameters.
An electronic interlocking system is reliable maintenance free fail safe and maintain clean room integrity by preventing both doors from being opened at the same time.
Powder coat inhibits microbial growth on external surface prevents contamination and improves safety
The full body of pass box is constructed of SS 304 which is maximum chemical resistance.
Internal coving for easy clean, bottom with heavy roller base.
This can be easily installed on the wall between the classified room and unclassified room.
Double skin door with glass view panel.
ISO Class 5 air cleanliness
HEPA filter 99.999% down to 0.3 micron
Fluorescent light (interlocked with door) When booth door closed both are electric magnet locked, for open press touch screen to release door at a time only one door opened.
Audio/visual indication for a material is kept inside the pass box.
In a close condition of both doors UV light will be on, when open any one door UV will off and FL will on.

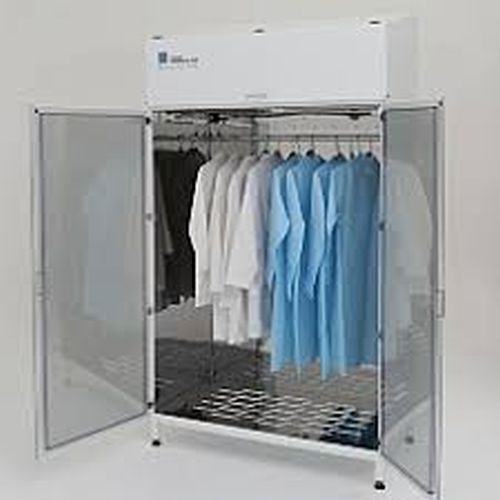

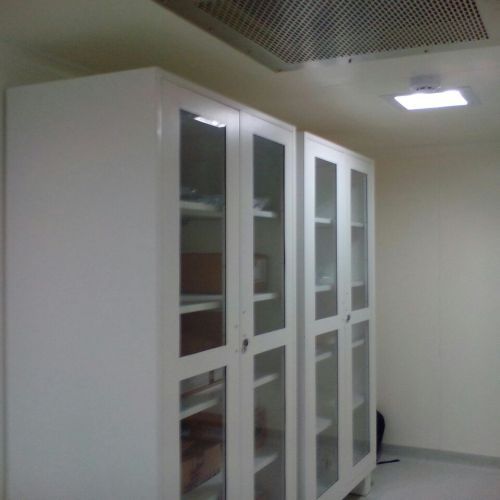

Kaizen Airtech garment storage cabinets have the highest degree of safety for both the users and for the product. Kaizen provides premium solution to maintain cleanliness of your controlled cleanroom environment. All models are fabricated of stainless steel or pre-coated GI sheet metal is available with overhead HEPA filter that shower particle free air to dislodge and wash away contaminants. Kaizen Aristech garment storage cabinets are available in the following configuration.
Key Benefits :
Disposable pre-filter
Reliable locker switch
Magnehelic Pressure gauge
Energy efficient
Features :
Two stage filtration Equipped with motor blower and miniplate HEPA filter module maintains vertical flow of particle free air to prevent dust build up.
Reliable rocker switches operate the fan and light & Magnehelic pressure gauge monitors cabinet operations.
Powder coat inhibits microbial growth on external surface prevents contamination and improves safety.
The full body is constructed of SS 304 which is maximum chemical resistance.
All cabinet component are clean room compatible isocide eliminates 99.9 % of surface bacteria within 24 hours of exposure.
U.V Light with Hour Meter.
Interlocking arrangement to put-off U.V. Light if either door opens.

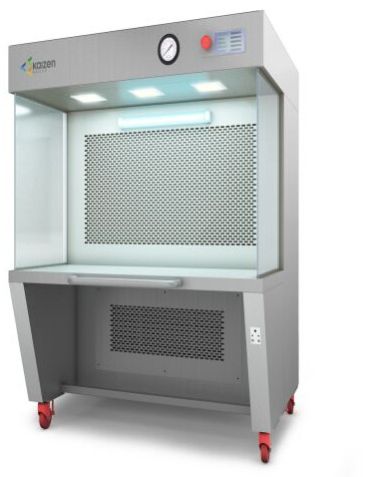

Kaizen Airtech Horizontal Laminar Flow Clean Bench blends in latest laminar flow technology and innovation to provide proven protection for your samples and processes. The new generation Horizontal Laminar Flow Clean Benches offers a wide range of options for our customers; with glass side wall, sizes from 2 to 6 feet, Behind the many options that the customer can select, the full range of the new Kaizen Airtech laminar flow clean benches is powered by the latest generation ultra-high efficiency motor. It now also offers ISO Class 3 (Class 100 air quality) work zone with a 10x efficiency of its HEPA filters. With more choices for the customers, Kaizen Airtech laminar flow clean benches still offer the same level of product protection for your samples and processes where operator protection is not required.
Key Benefits :
Class 100 Air quality maintains.
Energy Efficient
Superior airflow uniformity
Ergonomic design
Features:
Microprocessor Controller displays all safety information on one screen with a touch pad.
Stainless steel work surface ensures optimal clean less, chemical resistance and containment of accidental liquid spills.

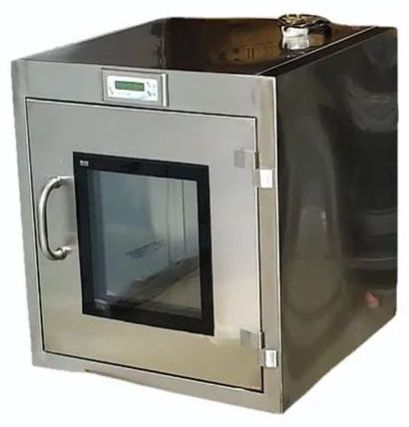

Introducing the Rectangular Static Pass Box, a new product from India. Made of stainless steel in a sleek silver color, this wall-mounted static pass box is designed for transferring materials between cleanrooms. It features interlocking doors for contamination control and comes in standard packaging. Ideal for maintaining cleanroom integrity.

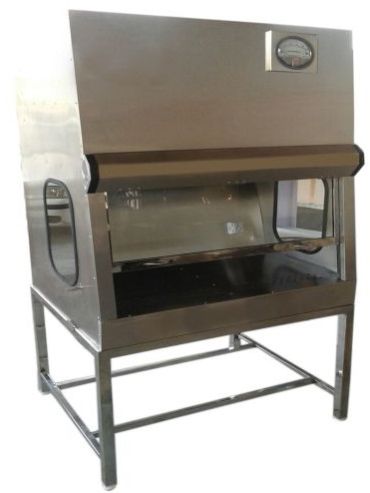

Kaizen Airtech Solution is a leading manufacturer in cleanroom equipment now given their customers.The Vertical Laminar Air Flow Unit offered by us is wide demand owing to its high-end performance and reliability. The new generation laminar flow clean benches offers a wide range of options for our customers, Even more choice to choose from a variety of models and features for their laminar flow clean bench needs. With more choices for the customers, Kaizen Airtech Solution laminar flow clean benches still offer the same level of product protection for your samples and processes where operator protection is not required.
Key Benefits :
Flexibility Design
Humidity Control
Adjustable Air Flow Velocity
Temperature Control
Low Vibration
Features :
Microprocessor Controller displays all safety information on one screen with touch pad.
Stainless steel work surface ensure optimal clean less, chemical resistance and containment of accidental liquid spills.
Energy efficient motor saves on your energy bills while increasing filter life lowering your total cost of ownership. Offers stable airflow, despite voltage fluctuations and filter loading with low noise at below 60 dbA.
Each clean bench is individually factory tested for safety and performance in accordance with international standards.
All components are cleanroom compatible.
10x filtration efficiency of HEPA filter creates Class 100 air quality work zone instead of industry-standard ISO Class 5.
Washable, reusable pre filter which trap dust and large particle.
The removable protective screen located in front of the HEPA filter and easily removed for service and cleaning.
Built in recessed illuminator provide diffused lighting without interfering with the laminar flow.
Kaizen Airtech Laminar Flow Clean Benches have been tested for cross-contamination and product protection using microbiological test.
Face velocity is adjustable from less than 90 FPM (0.45 m/s) to higher than 130 FPM (0.66 m/s)
Pressure drop from 0.35 to 0.795 inches W.G at 90 FPM (0.45 m/s)
High product protection by provision of ISO Class 5 particle free work area
Latest EC energy efficient fans providing maximum performance with minimal energy use
